Water Filling Machine

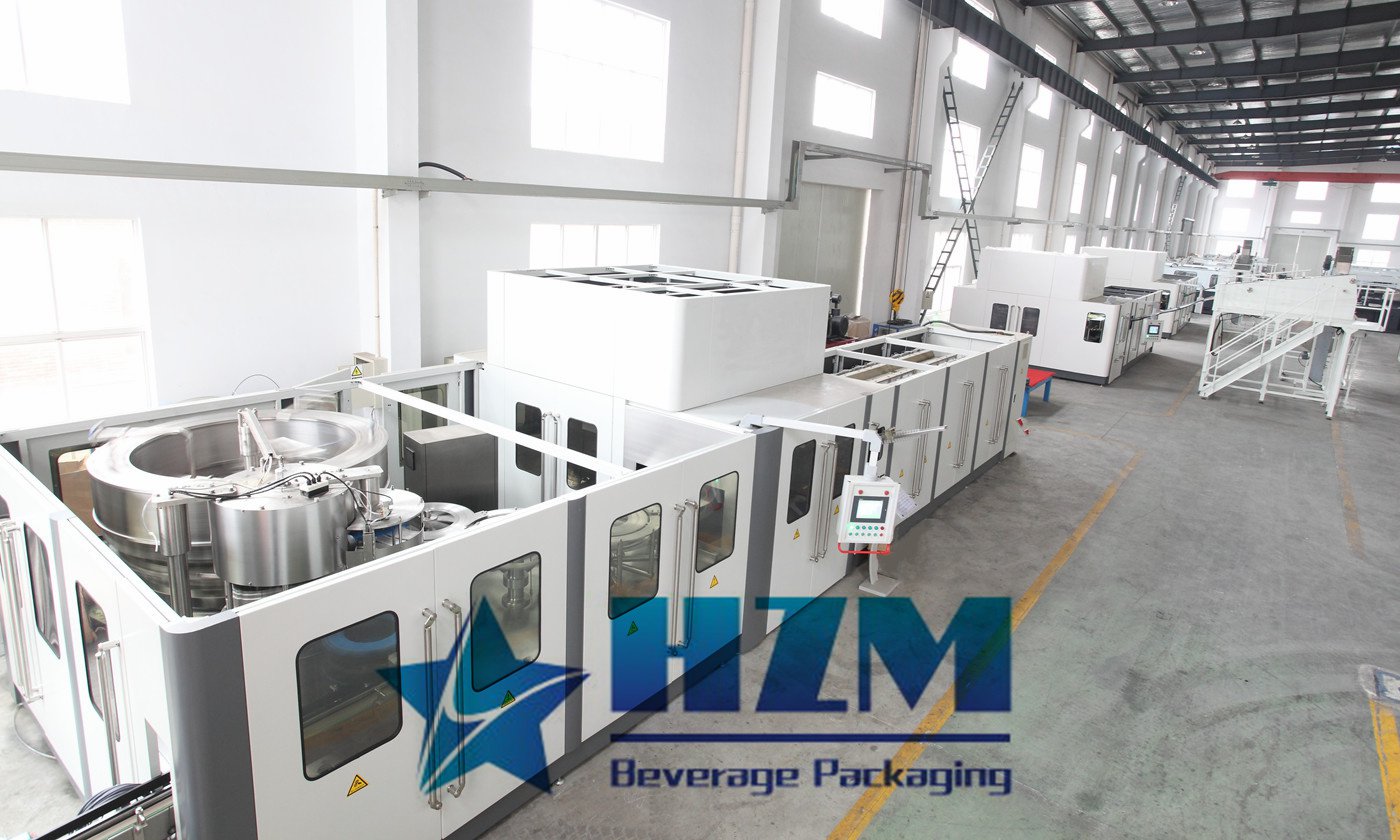

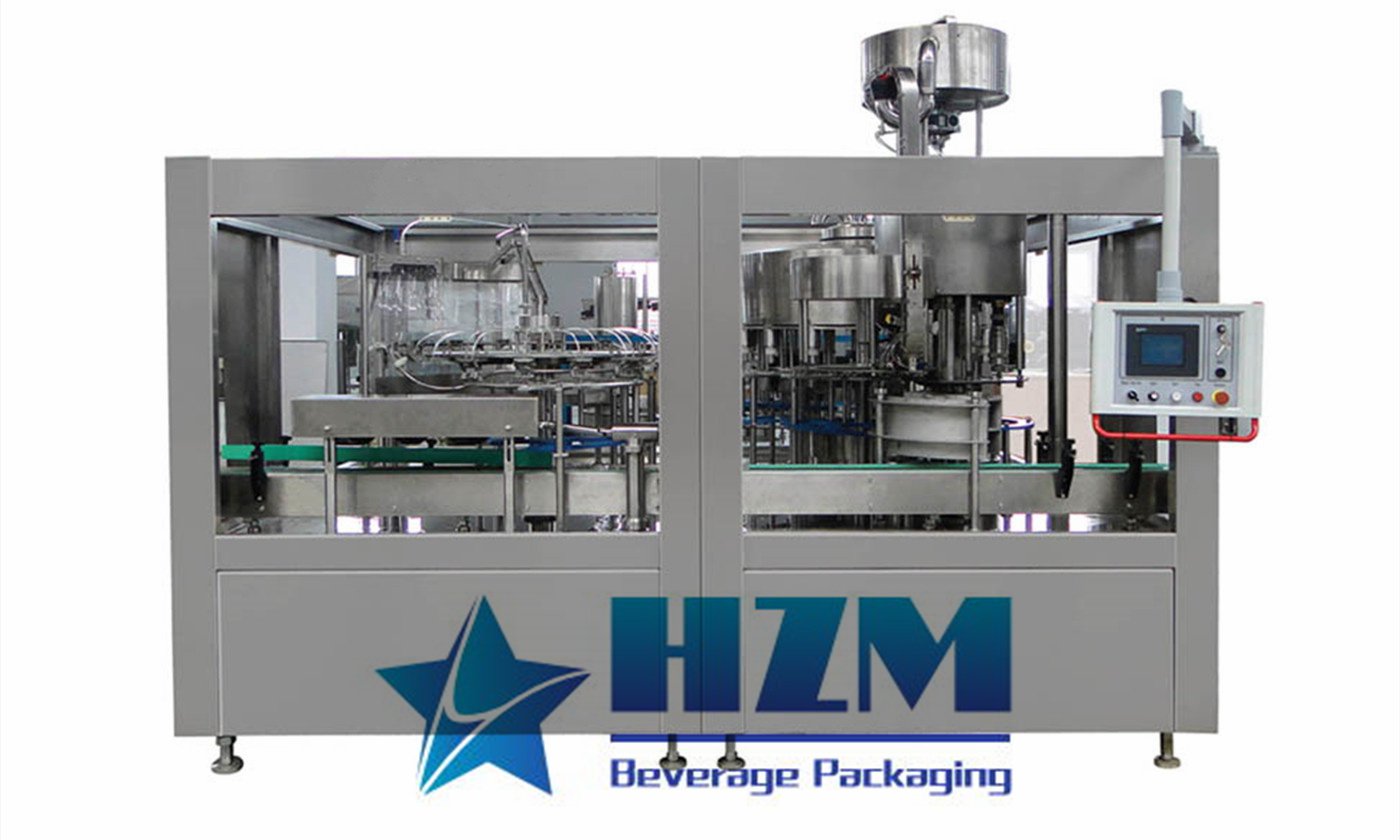

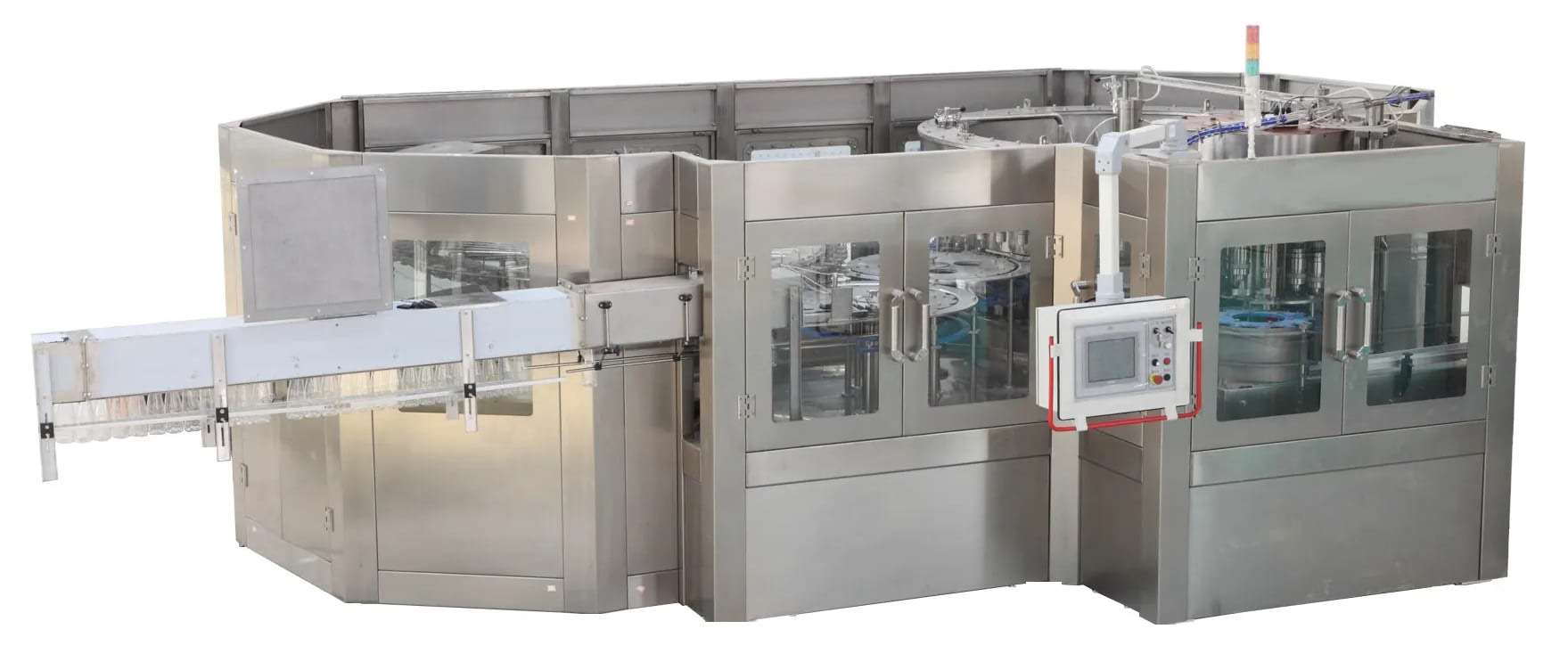

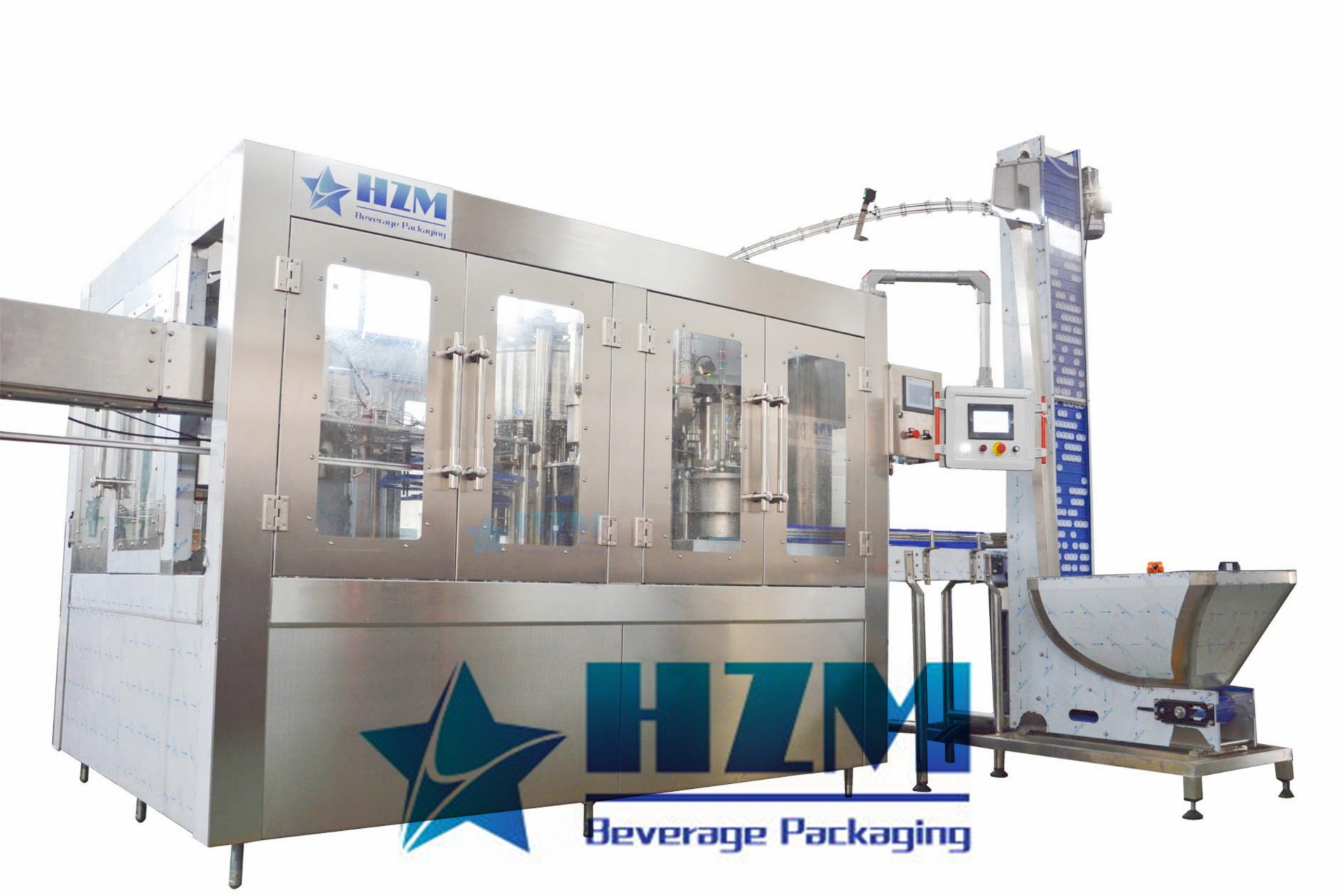

Water filling machine is a professional filling equipment for Non-carbonated drinking water products, which integrates washing, filling and capping. Based on the introduction, digestion and absorption of foreign advanced technology for automatic water bottle filling machine, according to the requirements of Non-carbonated automatic drinking water filling process, it is an advanced auto filling equipment. It is mainly used for washing, filling and capping Non-carbonated drinks such as pure water, mineral water.,etc. With simple and reasonable structure, convenient and safe operation, stability and reliability, and convenient maintenance.

Automatic filling machine adopts automatic bottle walking and automatic filling, with high filling precision, according to the different specifications of the bottle can be arbitrarily adjusted filling volume and bottle size, can be equipped with automatic water bottle filling production line.



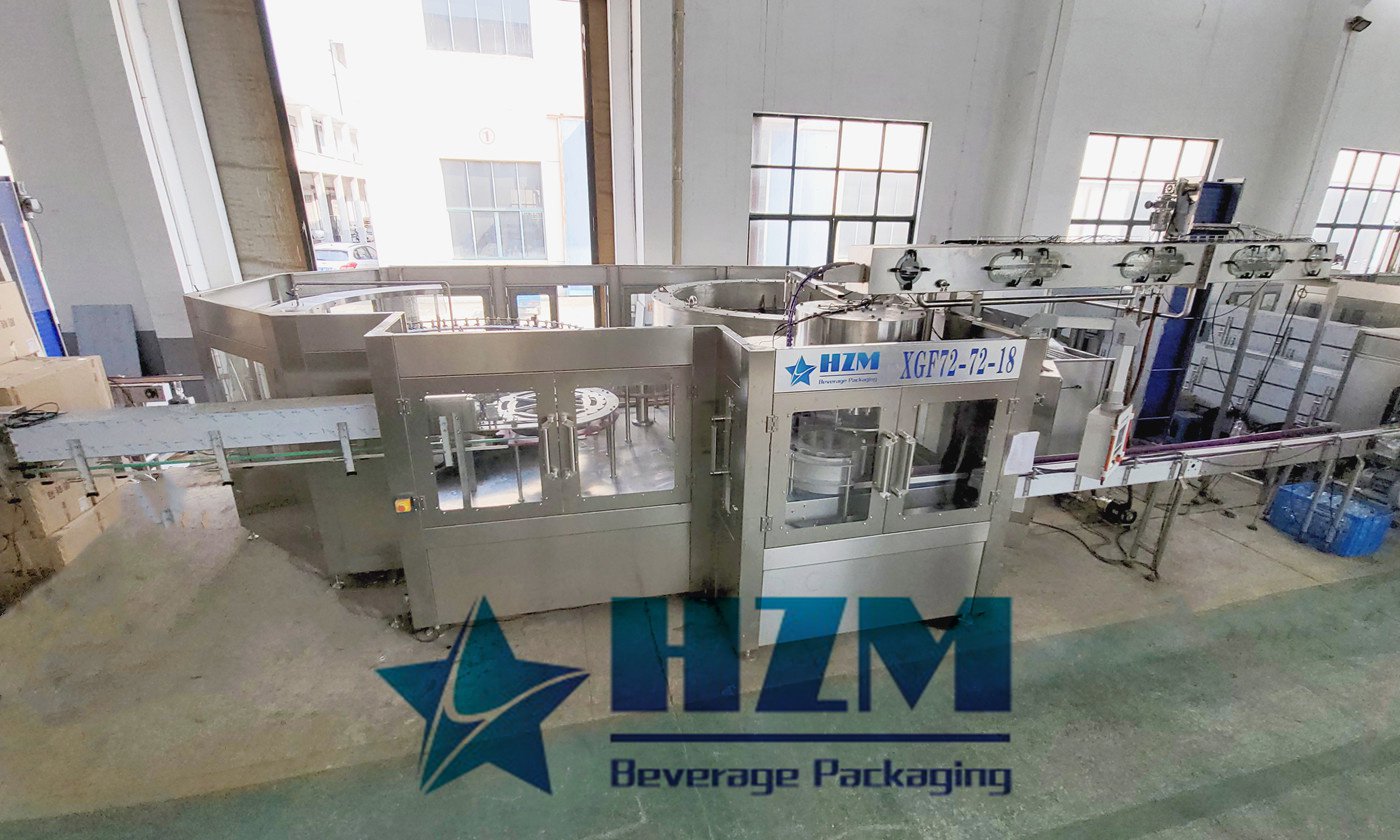

Water Filling Machine

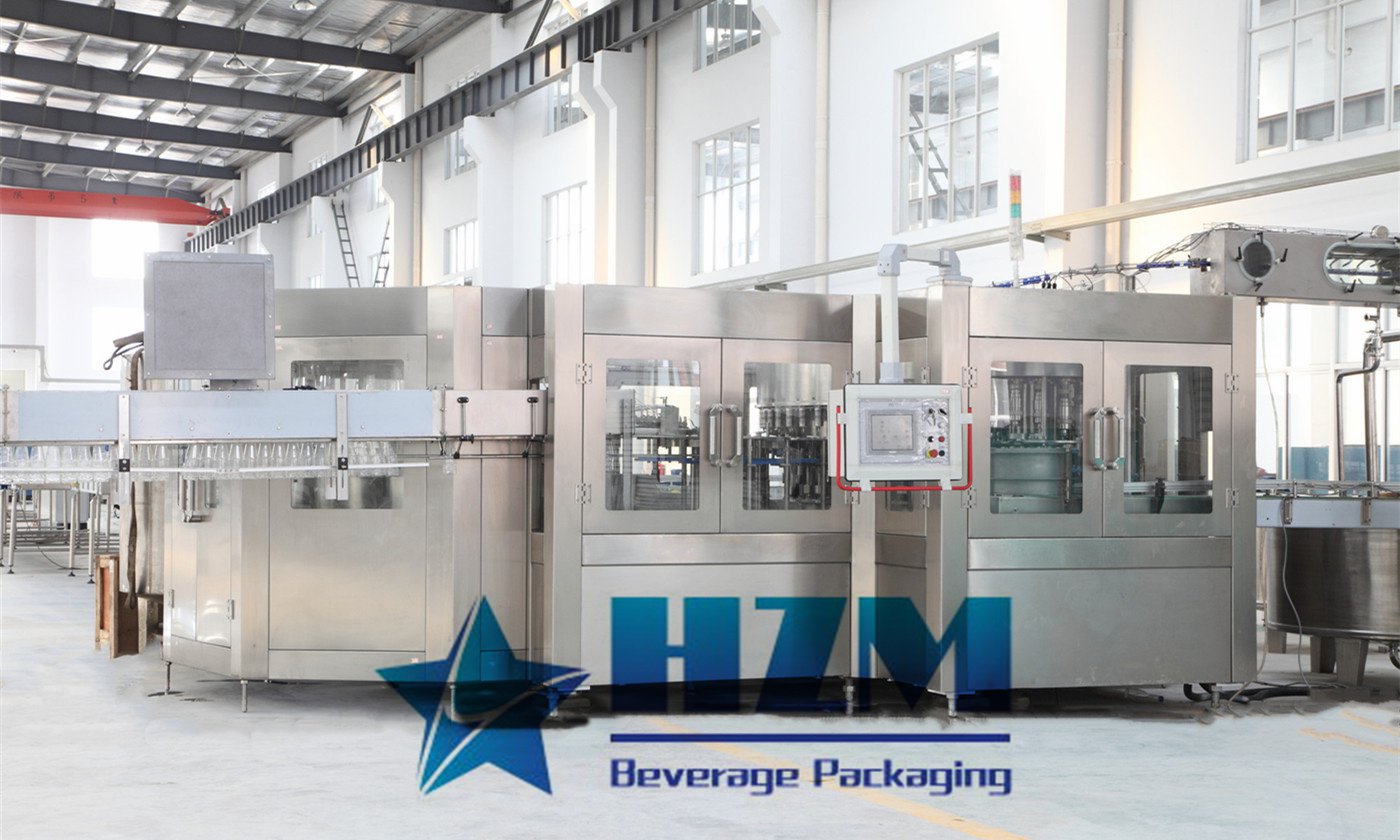

Water Filling Machine
Water Filling Machine

Advantages

Efficient response before and after sales

Always give efficient and timely response to customers, timely feed back pre-sales materials such as design scheme, design drawings, workshop layout to customers, and confirm the final scheme and place an order for production in the shortest time； Timely dispatch engineers to provide on-site installation guidance, and provide timely free spare parts and technical support to maximize the normal production and maintenance of customers

Use of high-quality raw materials

Always use high-quality raw materials and imported components to ensure the stable and long-term operation of the equipment; Adhere to the use of imported electrical components to facilitate customer maintenance and replacement in the future

Longer after-sales guarantee

Always adhere to the 24 month after-sales guarantee period, that is, provide free after-sales service and online and offline support within 24 months after the completion of equipment installation and commissioning

More comprehensive technical support

Always provide customers with the most comprehensive and perfect free technical support, including a series of technical data such as spare parts manual book, mechanical instructions, electrical schematic diagram, etc., to ensure the smooth use of customers to the greatest extent, which greatly facilitates the daily maintenance and operation of the machine by customers

Water Filling Machine

Parameter Comparison

Model

Washing

Heads

Filling

Heads

Capping

Heads

Bottle Diameter

(mm)

Bottle Height

(mm)

Capacity

(Based on 500ml)

Dimension

(mm)

XGF14/12/5

14

12

5

50-110

186-350

5000

2360*1770*2700

XGF16/16/5

16

16

5

50-110

186-350

8000

2760*2060*2700

XGF24/24/8

24

24

8

50-110

186-350

12000

2800*2230*2700

XGF32/32/8

32

32

8

50-110

186-350

15000

3550*2650*2700

XGF40/40/10

40

40

10

50-110

186-350

18000

4360*3300*2700

XGF50/50/15

50

50

15

50-110

186-350

24000

4720*3545*2700

XGF60/60/15

60

60

15

50-110

186-350

30000

5770*5288*2700

XGF72/72/18

72

72

18

50-110

186-350

36000

6540*4800*2700

XGF80/80/22

80

80

22

50-110

186-350

42000

7800*6380*2700

The above automatic water bottle filling machine technical parameters are subject to continuous update. Product details of water filling machine, you can contact us to know more.

PET

Size: 200ML~2000ML

Glass bottles

Size: 200ML~1000ML

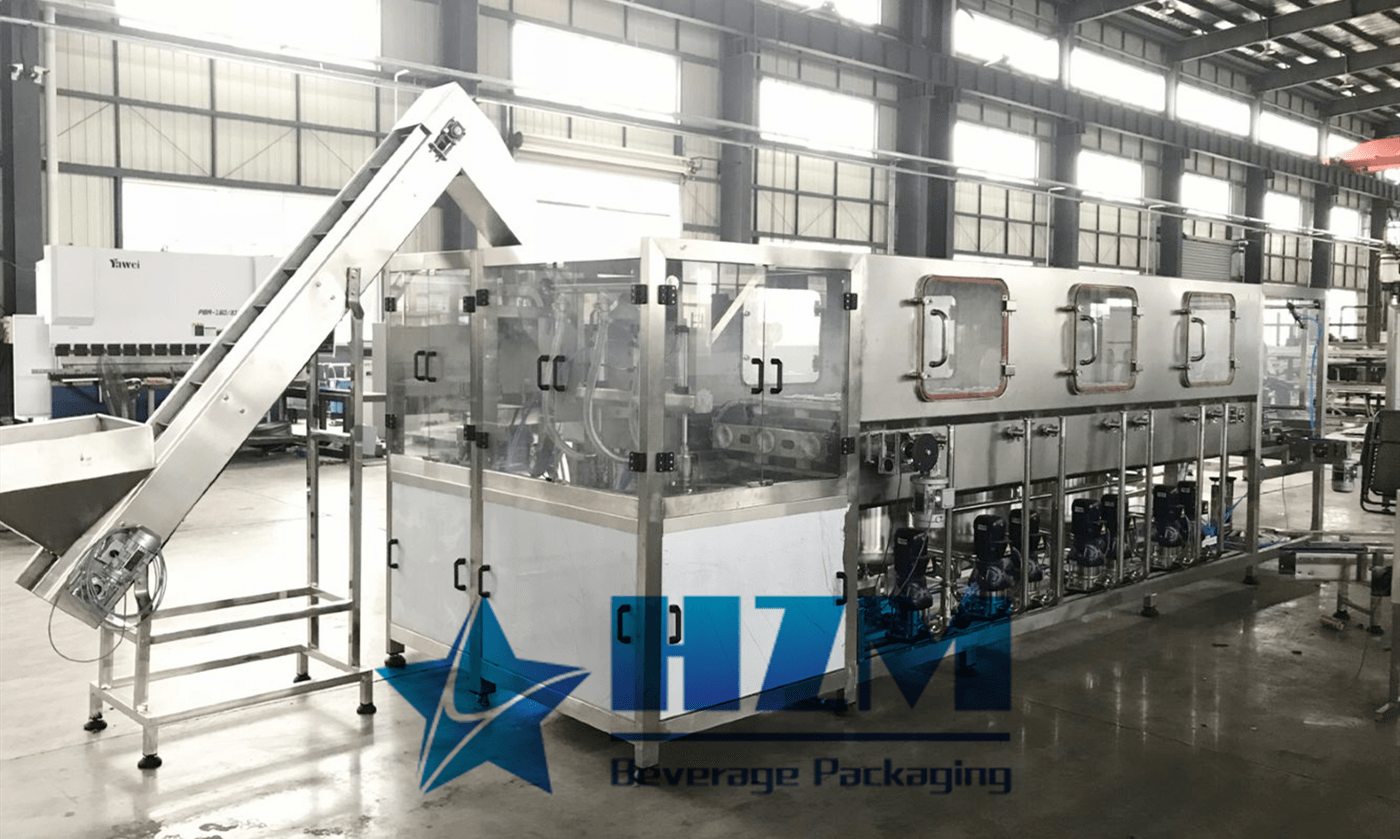

PC/PET

Size: 3/5 Gallon

Water Filling Machine for Sale

Automatic Water Filling Machine Overview

The water filling machine is a fully automatic multi-functional combined unit integrating rinsing, filling and sealing, which is suitable for the 3-in-1 automatic production of rinsing, filling and sealing of various non-gas beverages, mineral water, pure water, fruit juice, tea drinks, etc. The whole machine has unique design, compact structure, beautiful appearance, complete functions, strong adaptability, easy operation and maintenance, and continuous adjustable production capacity, which is the most advanced pure water filling production equipment.

Automatic filling machine adopts automatic bottle walking and automatic filling, with high filling precision, according to the different specifications of the bottle can be arbitrarily adjusted filling volume and bottle size, can be equipped with automatic water bottle filling production line.

Working characteristics

The normal filling temperature of the automatic water filling machine is around 25 ℃, its gravity filling. Compared with carbonated drinks filling machine, the process of water filling machine is more simple. Once the bottle neck touch the valve, it will start auto filling then.

Gravity filling, also known as atmospheric pressure filling machine, is filled under atmospheric pressure by the self-weight of the liquid. This type of filling machine is also divided into two kinds of regular filling and constant volume filling. Gravity filling machine is a common liquid filling equipment, mainly used for filling various liquid substances, such as beverages, edible oil, cosmetics, etc.. It uses the principle of gravity to naturally flow the filled materials into the container through gravity to achieve fast, accurate and pollution-free filling. The gravity filling machine is simple in structure and easy to operate, and can be adjusted and replaced with parts according to different needs. However, this filling machine is only suitable for filling low viscosity airless liquids such as pure water filling and mineral water filling. It is widely used in food, pharmaceutical, chemical and other industries, becoming one of the essential equipment in mass production and a must for beverage and pure water production plants.

Bottled water filling machine components

Bottle Washing Part

The pure water bottle is transmitted to the bottle washing machine by the conveying mechanism, and the bottle washing machine washes the inner wall of the bottle.

The bottle washer is equipped with bottle clamps on the rotary plate, which hold the bottle mouth and flip it 180° along a rail so that the pure water bottle mouth enters the bottle flusher downwards. In the specific area of the flushing machine, special nozzles spray flushing water to rinse the inner wall of the bottle. The bottle is rinsed, drained and then turned 180° along the guide rail with the bottle clamp holding it so that the bottle mouth is up. The washed bottles are exported by the bottle flusher through the bottle paddle star wheel and transferred to the filling machine.

Carbonated Filling Machine
Water Filling Machine

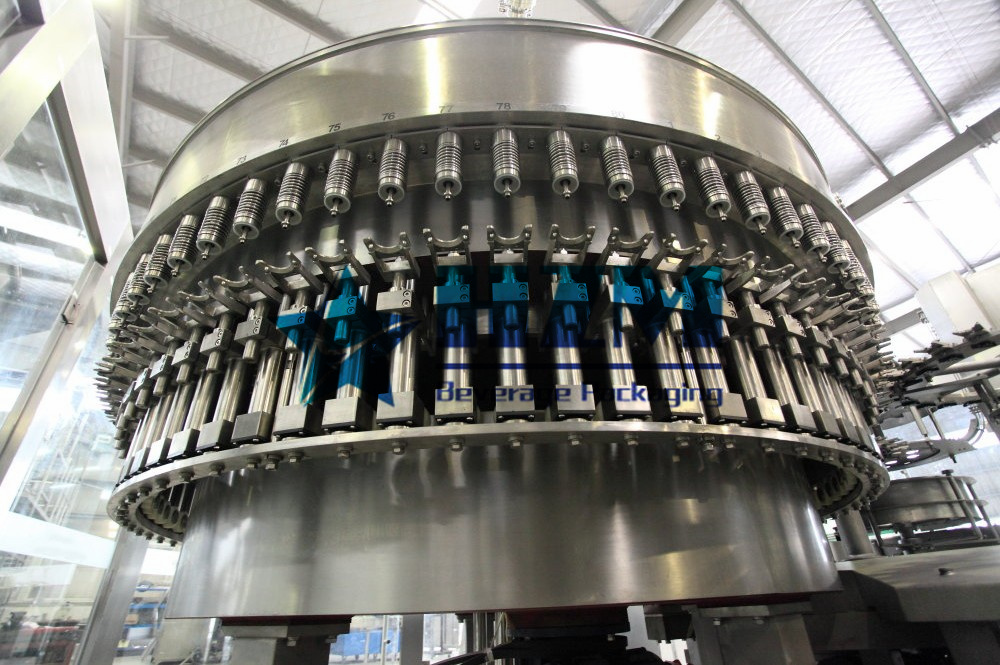

bottling filling part

The pure water bottle entering the filling machine is held by the bottle neck pallet and the bottle rises under the action of the cam, and then the filling valve is topped off by the bottle mouth. The filling is done by gravity filling. After the filling valve is opened the material passes through the filling valve to complete the filling process. When the liquid level inside the bottle blocks the return tube, the air stops returning and then the automatic filling stops. After the filling is finished, the bottle mouth drops down and leaves the filling valve, and the bottle enters the capping machine through the transition toggle wheel of the bottle neck of the card.

Bottle capping part

After washing and filling, the bottles arrive at the capping machine in the last stage under the action of the conveying mechanism. The locking parts on the capping machine block the bottle mouth to prevent rotation. The cap is kept in the capping machine with metric rotation and self rotation, and under the action of cams, it realizes the action of cap grasping, cap sleeve, cap screwing and cap removal to complete the whole capping process. Finally the pure water bottles are transferred from the capping machine to the bottle conveying chain through the bottle discharge toggle, and then transferred out of the 3-in-1 water bottle filling machine by the conveying chain.

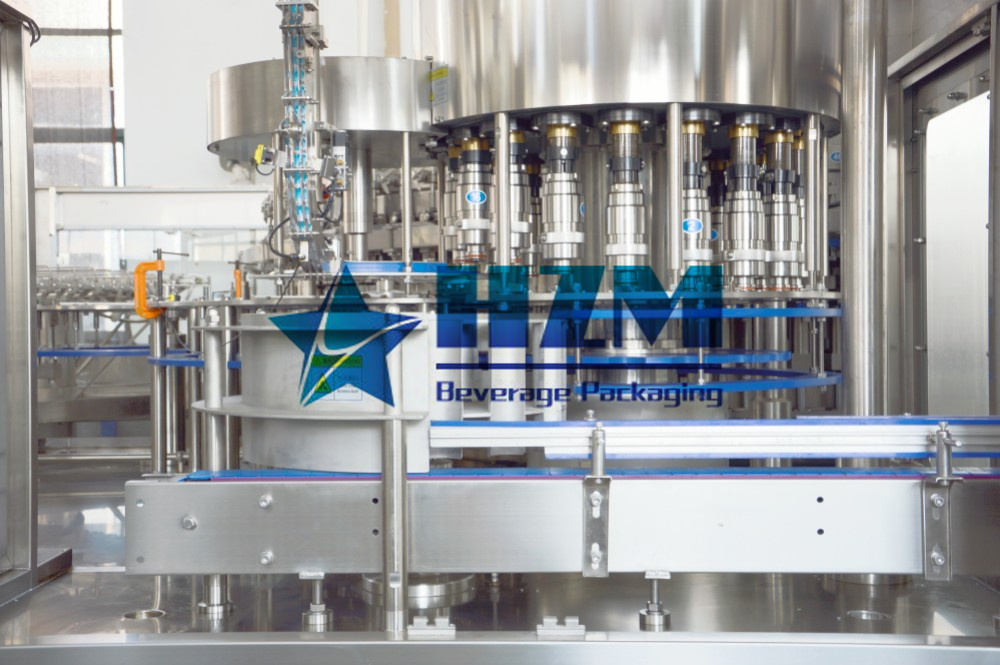

water filling machine-capping part
