Carbonated Filling Machine

The carbonated water filling machine adopts isobaric filling equipment that integrates cleaning, filling and capping. Based on the introduction, digestion and absorption of foreign advanced technology, according to the requirements of carbonated water filling process, it is an advanced filling equipment. It is mainly used for washing, filling and capping carbonated water such as soda, cola, sparkling wine and mineral water. With simple and reasonable structure, convenient and safe operation, stability and reliability, and convenient maintenance, it is the core equipment of large and medium-sized carbonated beverage plants.

Huazhen, as a professional carbonated beverage bottling machine manufacturer and exporter in China, has several carbonated water bottle filling machine production lines with high quality service, giving you the best choice.

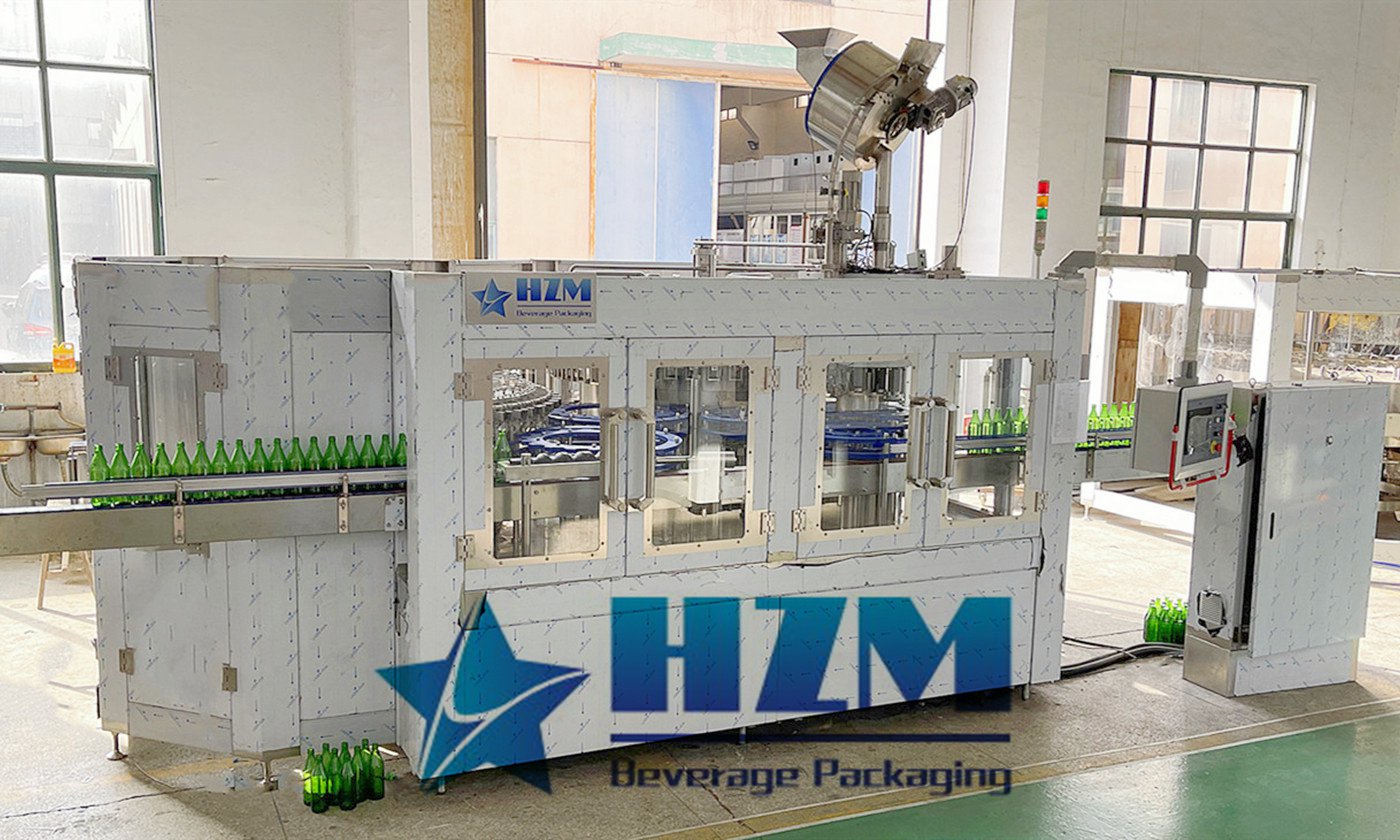

Carbonated Filling Machine
Water Filling Machine

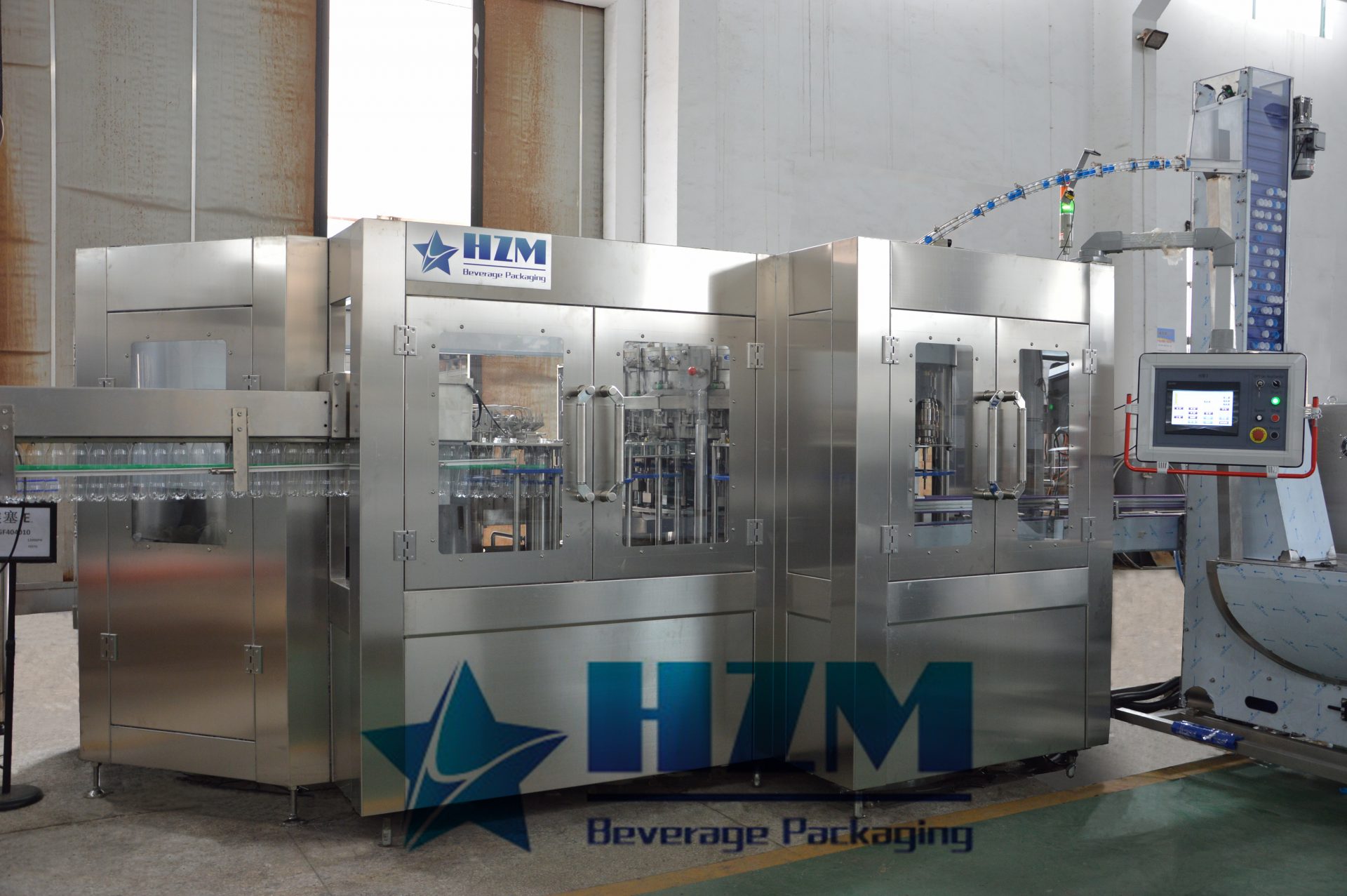

Carbonated Filling Machine

Advantages

Efficient response before and after sales

Always give efficient and timely response to customers, timely feed back pre-sales materials such as design scheme, design drawings, workshop layout to customers, and confirm the final scheme and place an order for production in the shortest time； Timely dispatch engineers to provide on-site installation guidance, and provide timely free spare parts and technical support to maximize the normal production and maintenance of customers

Use of high-quality raw materials

Always use high-quality raw materials and imported components to ensure the stable and long-term operation of the equipment; Adhere to the use of imported electrical components to facilitate customer maintenance and replacement in the future

Longer after-sales guarantee

Always adhere to the 24 month after-sales guarantee period, that is, provide free after-sales service and online and offline support within 24 months after the completion of equipment installation and commissioning

More comprehensive technical support

Always provide customers with the most comprehensive and perfect free technical support, including a series of technical data such as spare parts manual book, mechanical instructions, electrical schematic diagram, etc., to ensure the smooth use of customers to the greatest extent, which greatly facilitates the daily maintenance and operation of the machine by customers

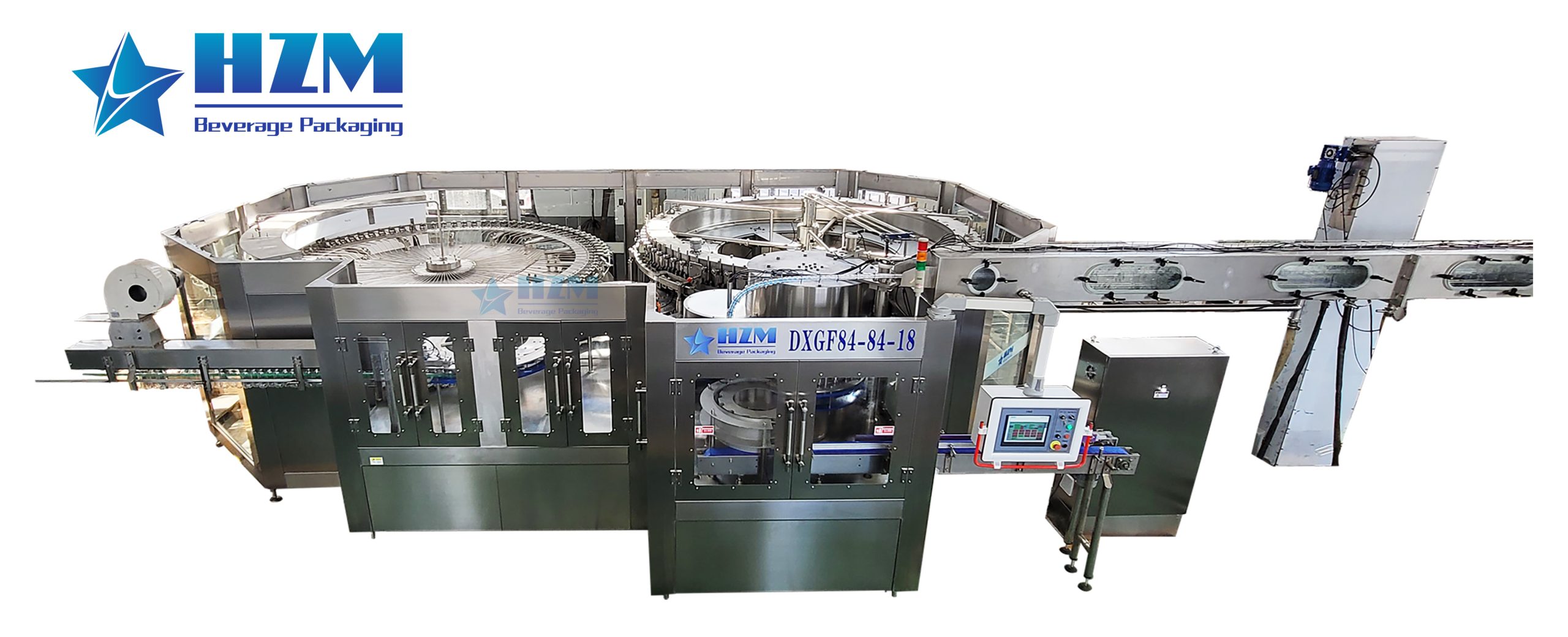

Carbonated Filling Machine

Parameter Comparison

Model

Washing

Heads

Filling

Heads

Capping

Heads

Bottle Diameter

(mm)

Bottle Height

(mm)

Capacity

(Based on 500ml)

Dimension

(mm)

DXGF14/12/5

14

12

5

50-110

186-350

4000

2360*1770*2700

DXGF16/16/5

16

16

5

50-110

186-350

5000

2760*2060*2700

DXGF24/24/8

24

24

8

50-110

186-350

8000

2800*2230*2700

DXGF32/32/8

32

32

8

50-110

186-350

12000

3550*2650*2700

DXGF40/40/10

40

40

10

50-110

186-350

15000

4360*3300*2700

DXGF50/50/15

50

50

15

50-110

186-350

18000

4720*3545*2700

DXGF60/60/15

60

60

15

50-110

186-350

21000

5770*5288*2700

DXGF72/72/18

72

72

18

50-110

186-350

28000

6540*4800*2700

DXGF80/80/22

80

80

22

50-110

186-350

36000

7800*6380*2700

The above carbonated water bottle filling machine technical parameters are subject to continuous update. Product details of carbonated filling machine, you can contact us to know more.

PET

Size: 200ML~2000ML

Glass Bottles

Size: 200ML~1000ML

Cans

Size: 200ML~750ML

Carbonated Filling Machine for Sale

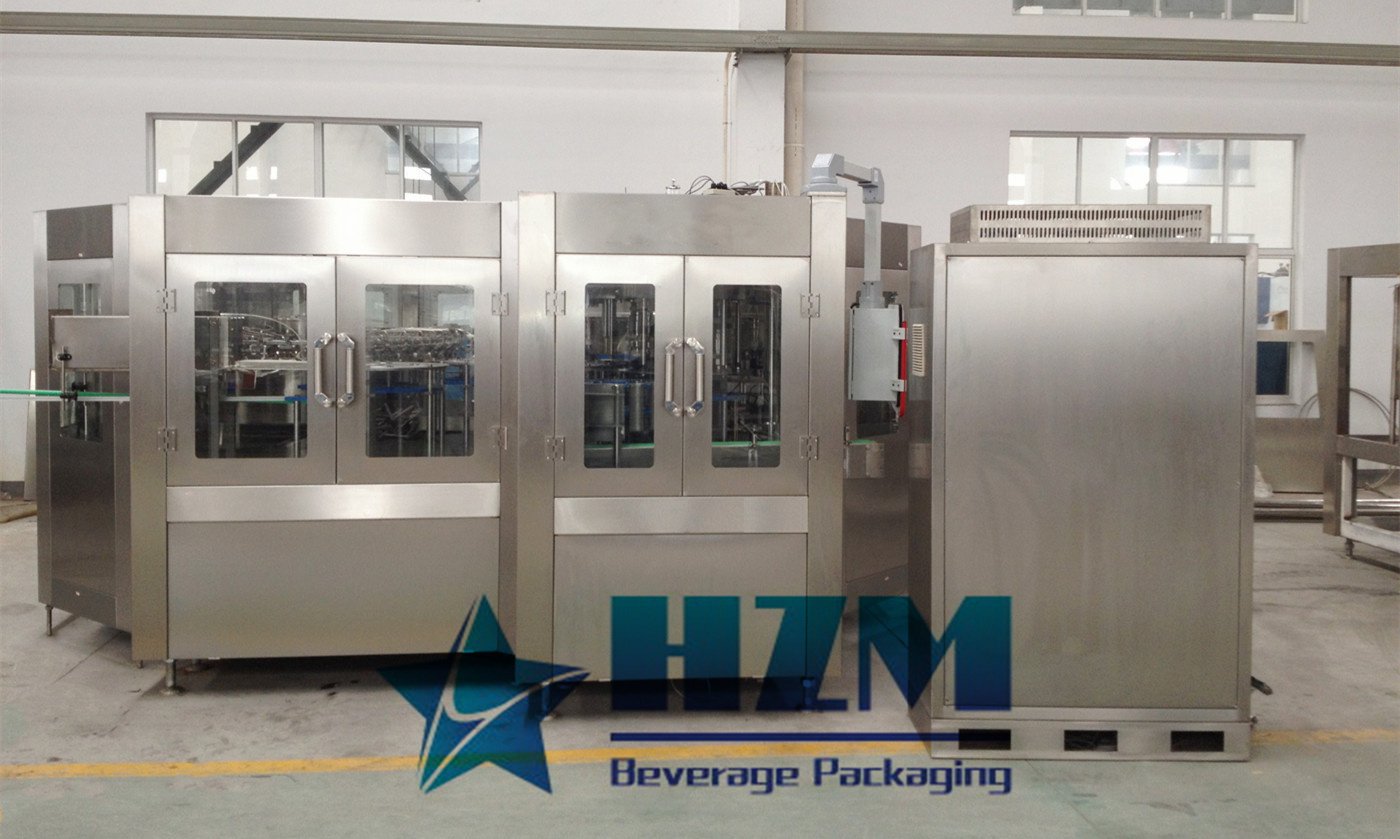

Carbonated Filling Machine

Carbonated Filling Machine Overview

The carbonated water filling machine adopts isobaric filling equipment that integrates cleaning, filling and capping. Based on the introduction, digestion and absorption of foreign advanced technology, according to the requirements of carbonated water filling process, it is an advanced filling equipment. It is mainly used for washing, filling and capping carbonated water such as soda, cola, sparkling wine and mineral water. With simple and reasonable structure, convenient and safe operation, stability and reliability, and convenient maintenance, it is the core equipment of large and medium-sized carbonated beverage plants.

bottle washing part

The bottles are transferred by the conveyor mechanism and conveyed to the bottle washing machine of the 3-in-1 machine through the bottle paddle star wheel. The bottle washing machine is equipped with bottle clamps on the rotary disc, which grip the bottle mouth and flip it 180째 along one rail to make the bottle mouth down. In the specific area of the bottle washer, the bottle washer nozzle sprays bottle washing water to rinse the inner wall of the bottle. After rinsing and draining, the bottle is held by the bottle clamp and then turned 180째 along the guide rail, so that the bottle mouth is up.

Carbonated Filling Machine
Carbonated Filling Machine

bottling filling machine part

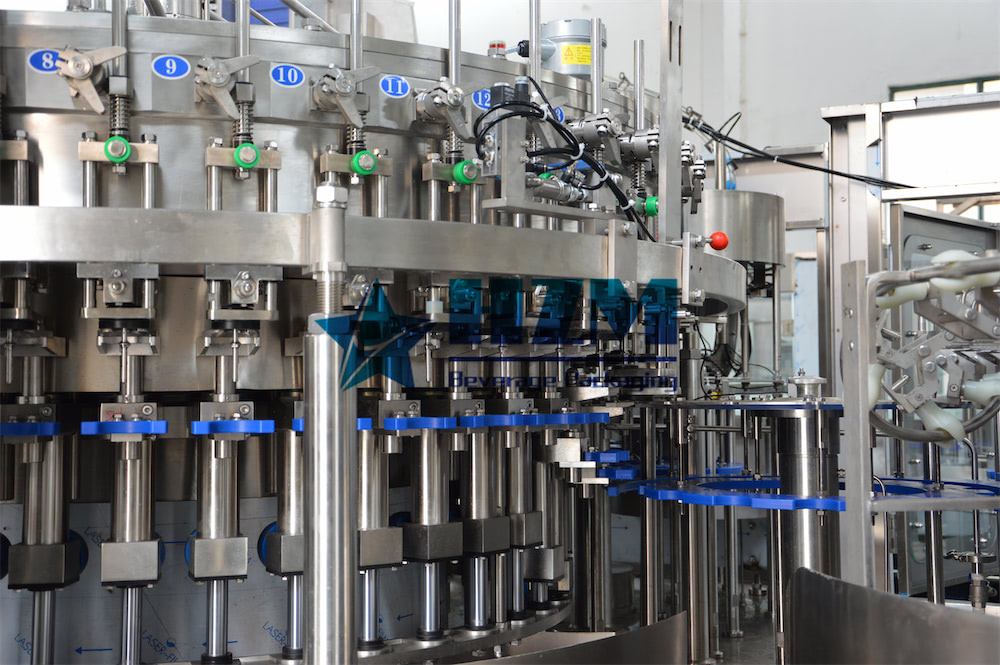

The cleaned bottle is sent to the filling machine under the action of the transmission mechanism. The bottle entering the bottling filling machine is covered by a bell shaped cover, and under the action of the lifting device, the bottle rises to contact the filling valve. After the detection switch senses the bottle, it will send a signal and the control valve opening device is ready to start filling carbonated water. First, the pressure in the bottle and the filling tank is the same after gas injection. Then start liquid filling. When the liquid level in the bottle reaches the height of the air return pipe, stop air return and automatically stop filling.

Bottle capping machine part

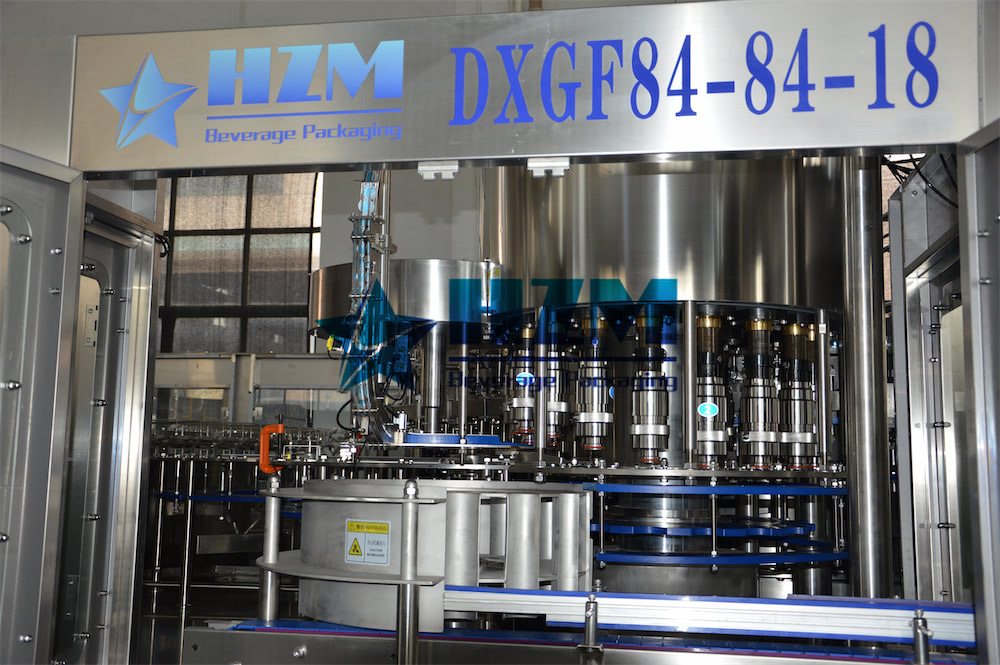

After filling, the bottle will reach the capping machine at the last link under the action of the conveying mechanism. The locking part on the capping machine blocks the bottleneck to prevent rotation. The capping head keeps revolution and rotation on the capping machine, and realizes the whole capping process under the action of the cam. The carbonated water bottling filling process of  is completed at this point.

Carbonated Filling Machine

Working feature: the normal filling temperature of the carbonated beverage filling machine is below 5 ℃, and carbonated water is filled in an equal pressure manner; Compared with ordinary pure water filling machine, the process of carbonated drink water filling machine is relatively complex. Before filling, the filling tank shall be prepared for pressure; And the pressure in the bottle must be consistent with that in the filling tank.

Isobaric carbonated beverage filling machine

The isobaric filling machine generally maintains a certain filling pressure in the storage tank. When the container to be filled enters the filling machine, the container is first inflated, and the gas can be compressed air or carbon dioxide gas, with carbon dioxide gas being preferred. When the pressure in the container and the storage tank pressure is the same, that is, with the self-weight of the liquid through the opening of the filling valve filling. During the filling process, the gas inside the container will be exported smoothly and returned to the storage tank or the gas chamber.

Product Features

1.By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle change is easier.

2.The parts that direct contact with product are made of SUS 316L stainless steel and no technology corner pockets.

3.Rapid flow, highly filling precision, nicety liquid level without any liquid loss to satisfy the filling process demand.

4.Periodical gas exhaust and fast and slow snifting prevent product foaming.

5.Valve opening device is driven by the cylinder; open the valve in time according to the signal, movements are accurate and reliable.

6.Using deflection regulating valve, continuous control of fluid materials flow, so that hydraulic cylinder to maintain a smaller level fluctuations, ensure filling accuracy.

7.Simple internal filling valve chamber without springs ensure thorough cleaning & sanitation. Automatic CIP cups are highly efficient.

8.The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.

9.All control is advanced touch-screen operation and realize people-computer dialogue operation.

Carbonated Water Filling Machine Configurations

NameSupplier
Main Motor & ReducerSEW-Germany
Rinsing PumpCNP-China
InverterSIEMENS-Germany
PLCSIEMENS-Germany
Touch ScreenSIEMENS-Germany
ContactorSCHNEIDER-France
Hot RelaySCHNEIDER-France
Air SwitchLEUZE/BANNER-Germany
Photoelectric SwitchBANNER-USA
Pneumatic ComponentsFESTO-Germany
Sliding BearingIGUS-Germany

For carbonated water filling machine parameters of the configuration of any unclear place you can contact us to get professional guidance, while we also provide carbonated drinks bottling machine customized service!

Download Carbonated Water Filling Machine PDF Brochure

Carbonated Water Bottling Video
