CO2 Saturator

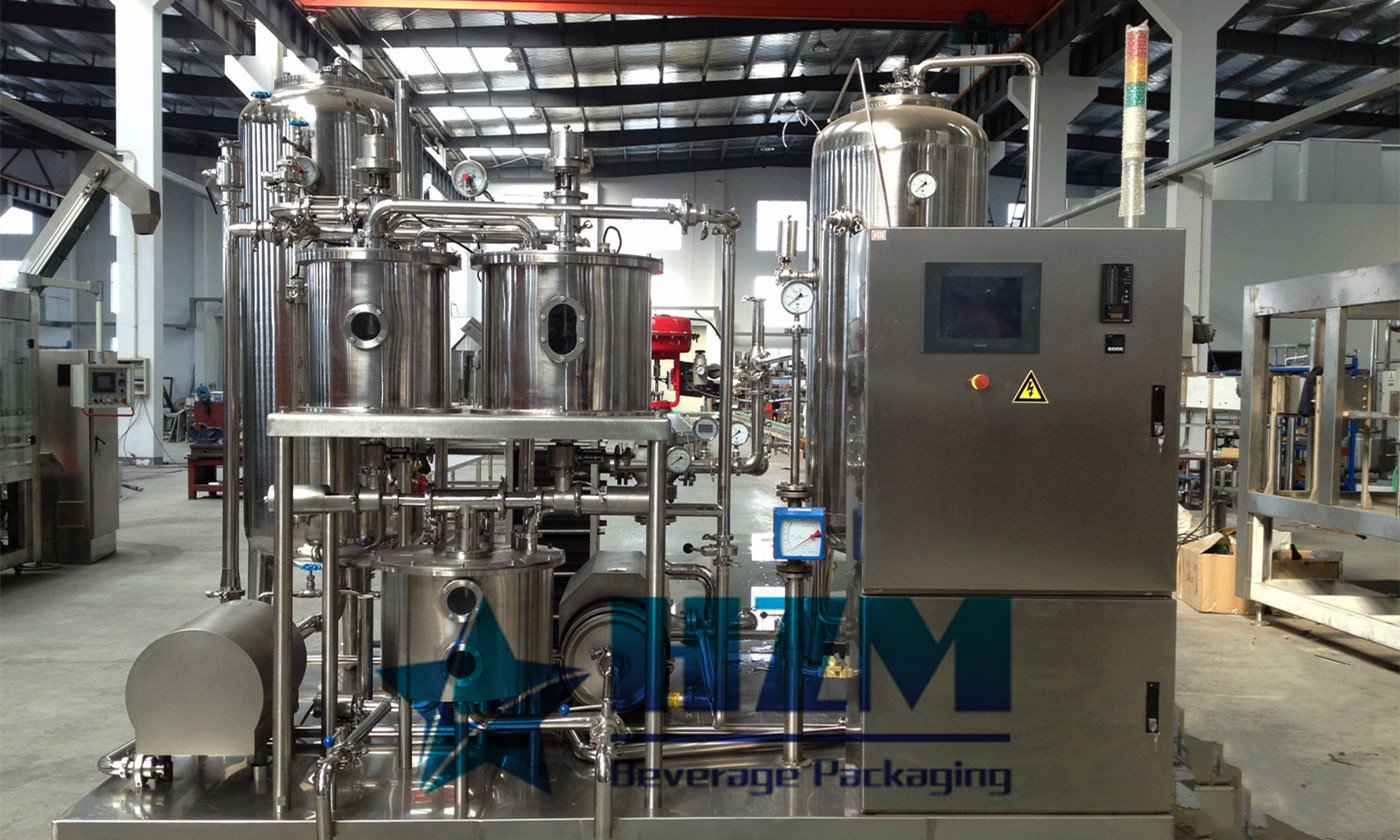

Co2 mixer machine is mainly used in carbonated beverage production line. It is the core equipment of the production line, 5 tanks type design. It has the advantages of high mixing ratio accuracy, twice carbonation and high Co2 content.We used 5 tank design, which is higher efficiency for co2 mixing with beverage in cold temperature. All temperature and mixing time is setting by HMI
Inquire

Brief Introduction

This WYH series CO2 saturator is a machine developed by our company on the basis of combining foreign technology. Themachine has the characteristics of accurate mixing, reasonable structure, easy adjustment, and hygiene. High-quality polishedstainless and acid-resistant steel is used in all contact parts with beverages, which meets the requirements of food hygiene. The pipeline adopts a closed system, which can meet the requirements of cleaning and disinfection, and avoid secondary pollution ofmaterials in the process of transportation. This machine is suitable for producing all kinds of carbonated beverages and fruit-flavored gas-containing beverages containing CO2, and can conveniently adjust the production capacity and the mixing ratio of water and syrup.

Advantage

  • High accuracy
  • Long service life
  • High productive
  • Easy to operate
  • Long warranty
Product Features
Product Configurations
Product Parameters

Product Features

1.This machine has a compact structure, perfect control system, easy to operate and highly automated.

2.Adjustable pressure of carbonic acid gas: the carbonating pressure in the cooling carbonating tank is decided by the readings of stock tank which can be adjusted by changing the pre-carbonization to form a best condition for filling machine.

3.CO2 Content high: in case of operating the machine at lower temperature, the content of CO2 of products can reach up to 4.5 times.

4. Mixing precision: the white sugar of beverage liquid keep around ±0.05 degrees.

5.Convenience for adjusting: it can adjust the capability and the ratio of water to sugar conveniently without changing the components.

6. High automatization: with micro-machine controlling, it can realize the auto-interlock in the process of production and it will auto-alarm and stop when failures happen.

7.Structure sanitation: the machine adopts device and pipelines made of stainless steel to rinse.

Product Configurations

Name Supplier
Mixing Pump CNP-China
PLC SIEMENS-Germany
Touch Screen SIEMENS-Germany
Contactor SCHNEIDER-France
Hot Relay SCHNEIDER-France
Air Switch SCHNEIDER-France
Pneumatic Parts FESTO-Germany

Product Parameters

Model WYH440 WYH640 WYH940 WYH1240 WYH1640 WYH2040
Capacity (T/H) 4 6 9 12 16 20
Dimension (mm) 2600*2000*2800 2600*2000*2800 3500*2200*3020 3500*2200*3020 3500*2200*3020 3500*2200*3020
Power (kw) 7 12 18 18 22 25
