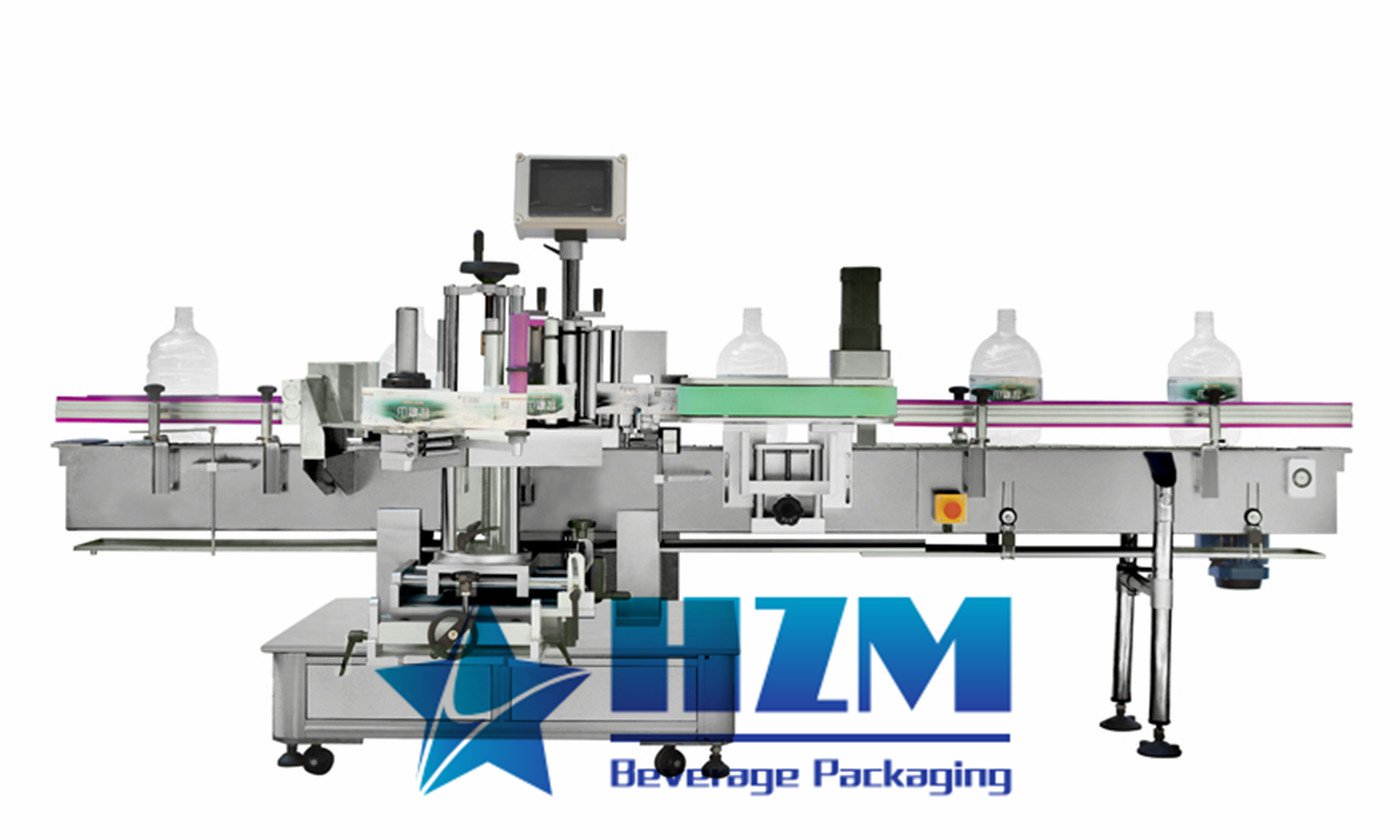

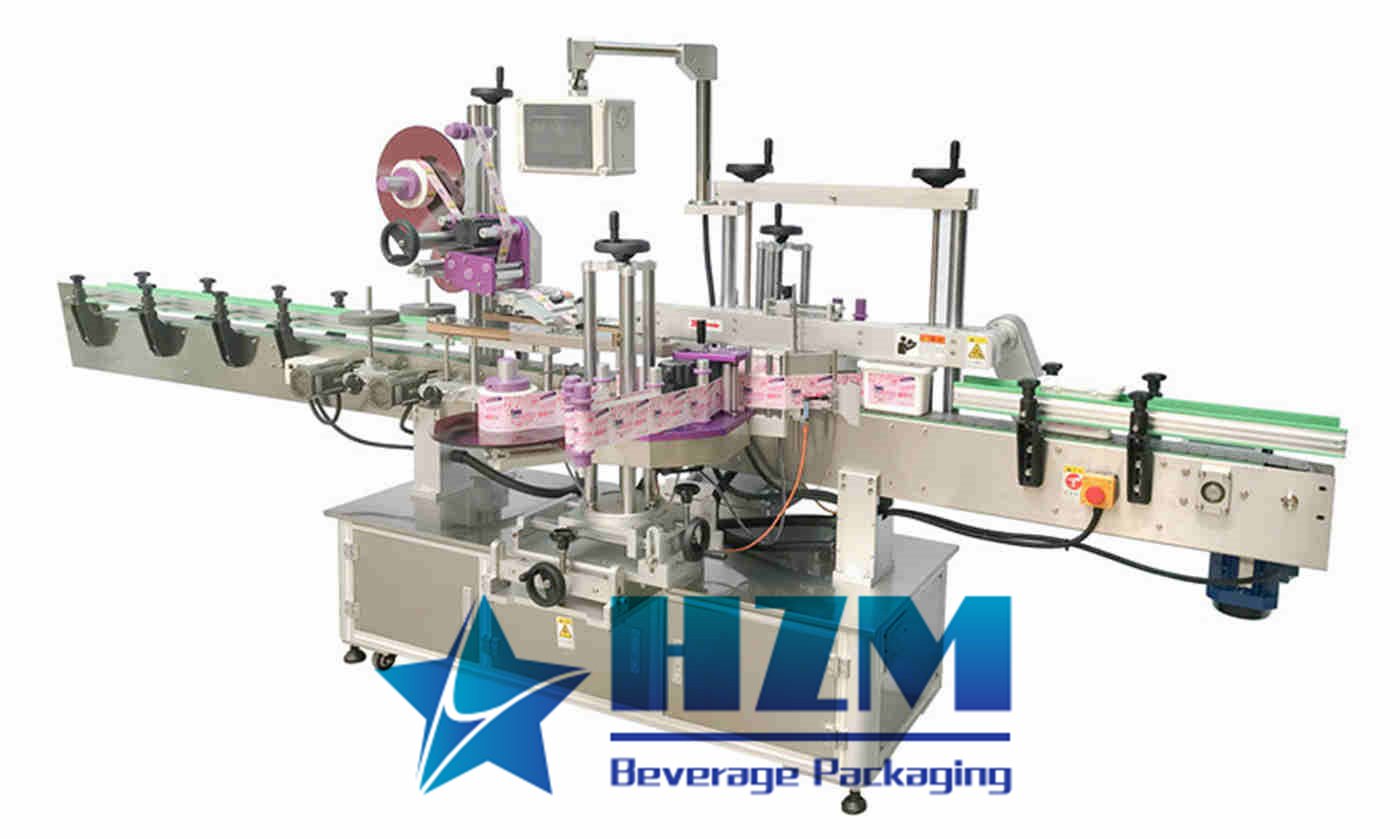

Automatic Linear Type Adhesive Sticker Labeling Machine

Self adhesive labeling machine is automatic sticker labeling machine, automatic gluing, automatic calibration, automatic labeling, automatic photoelectric detection, high degree of automation, wide adaptation range, convenient adjustment, simple operation, attractive appearance, easy maintenance, cleaning. Applicable to food, drinks, alcohol, chemical, pharmaceutical container labeling.

Brief Introduction

This machine is automatic self-adhesive labeling machine, automatic gluing, automatic calibration, automatic labeling, automatic photoelectric detection, high degree of automation, wide adaptation range, convenient adjustment, simple operation, attractive appearance, easy maintenance, cleaning. Applicable to food, drinks, alcohol, chemical, pharmaceutical cylindrical container labeling, different specifications of the bottle-shaped labeling work can be quickly replaced, the stability of the labeling process is ideal equipment for mass production instead of manual labeling.

Advantage

  • High accuracy
  • High productive
  • Easy to operate
  • Long warranty
  • Long service life
Product Features
Product Configurations
Product Parameters
Video

Product Features

1.With inverter speed, be free to adjust the speed when the motor is running, labeling capacity is free to control.

2.Automatic gluing, automatic calibration, automatic labeling, automatic photoelectric detection, high degree of automation, wide adaptation range, convenient adjustment, simple operation, attractive appearance, easy maintenance, cleaning.

3.Paste slot with stainless steel rollers with precision machining, glue as used with the check, and easy to clean.

4.Special rubber wheel by the number of road Process, not deformation, wear-resistant. On a the uniform thin plastic, glue amount of savings.

5.Pressure standard belt original Japan up to machines imported products, this belt core ply metal wire, and enhance the intensity of use, to avoid the phenomenon of thermal expansion and contraction and pumping of stomatal aperture changes other company products, stable pumping vacuum flow, thus ensuring stable conveying Label.

6.Labeling machine with PLC program automatic labeling process, compared with single-chip control actions achieve more stable, more convenient maintenance.

7.Machine processing precision and delicate, the basic components are standard accessories, convenient maintenance.

Product Configurations

Name Supplier
Touch Screen SIEMENS-Germany
PLC SIEMENS-Germany
Inverter DANFOSS-Denmark
Servo Motor&Driver PANASONIC-Japan
Bottle Sensor SICK-Germany
Label Sensor LEUZE-Germany
Low Voltage Electrical Parts SCHNEIDER-France

Product Parameters

Model Labeling accuracy

(mm)

Capacity

(BPM)

Bottle Diameter

(mm)

Label Max Width

(mm)

Dimension

(mm)

ALM-90D ±1 90 φ15-φ100 200 3000*1500*1650
ALM-150 ±1 150 φ15-φ100 200 3000*1200*1650
ALM-250 ±1 250 φ15-φ100 200 3000*2410*2100
ALM-300 ±1 300 φ30-φ90 200 3000*2720*2100
ALM-600 ±1 600 φ30-φ90 200 3000*2720*2100
