HOMEProducts3-10L Big PET Bottle Water Filling Machine

3-10L Big PET Bottle Water Filling Machine

Big bottle water filling machine a fully automatic multifunctional combined unit consisting washing, filling and capping. The water filling machine has the advantages of unique design, compact structure, beautiful appearance, complete funtions, strong adaptability, convenient operation and easy maintenance. The water filling machine capacity range starts from 1000BPH to 3000BPH by single one.
Inquire

Brief Introduction

3L-10L PET Bottle washing filling and capping machine is used for production of purified water, mineral water, spring water in big PET bottle. Bottle washing filling and capping can be realized in one machine. This machine is featured by scientific and reasonable designm complete fuctions, convenient operation and maintenance and highly automatic. The whole machine adopts the PLC control. It is provided the functions as automatic control of the liquid level in the material cylinder, no bottle no filling and no bottle no cap feeding..

Advantage

  • High accuracy
  • Long service life
  • High productive
  • Easy to operate
  • Long warranty
Product Features
Product Configurations
Product Parameters
Video

Product Features

1.Water filling machine has a compact structure, perfect control system, easy to operate and highly automated.

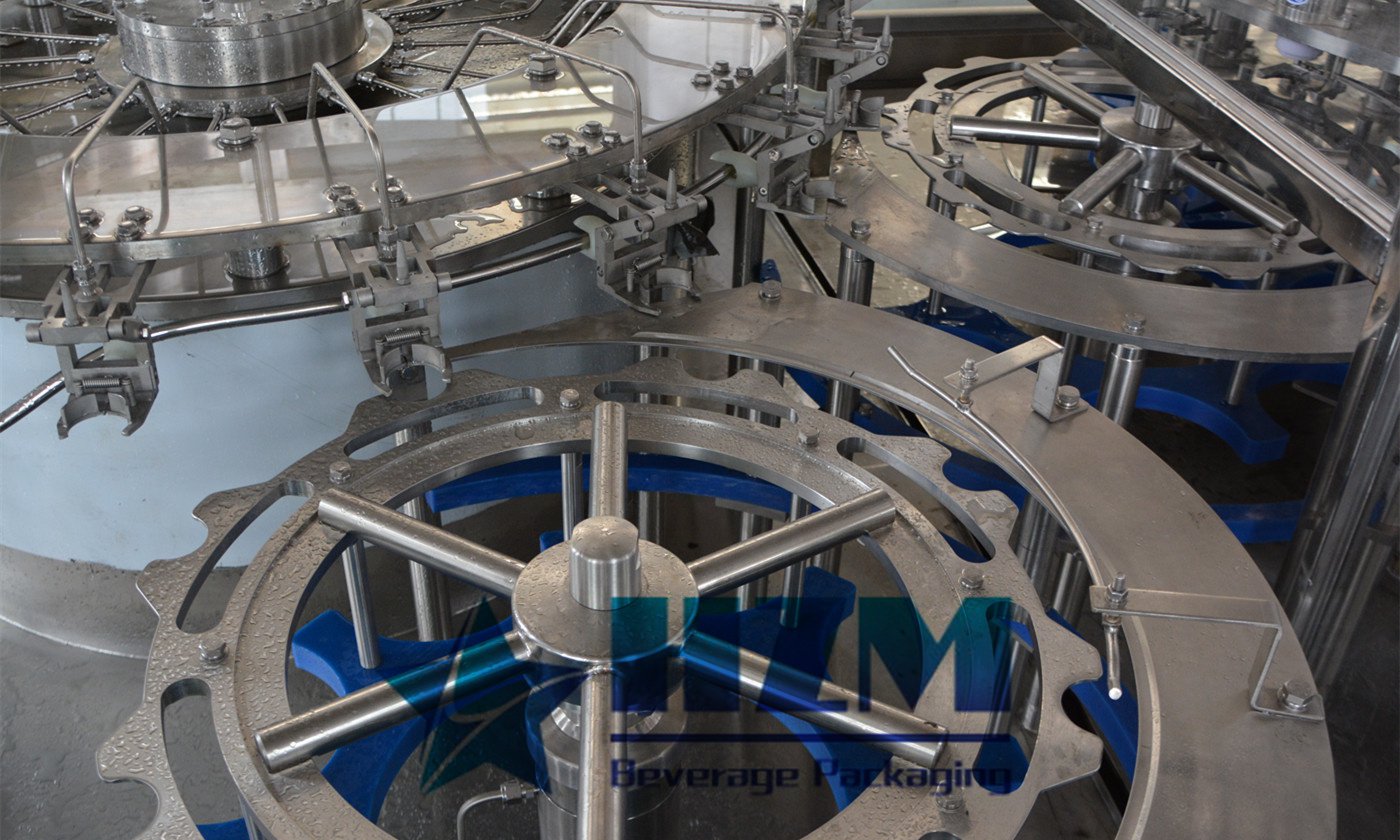

2.Only by changing the star-wheel and some parts can realize different bottle volume filling.

3.The parts touch with product is made of SUS316/304, anti-corrosive, and easy to clean.

4.Rapid flow, highly filling precision, nicety liquid level without liquid loss to satisfy the filling process demand.

5.The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.

6.Water filling machine has a high efficient cap arranging system, perfect cap feeding with self-control and self-protection device.

7.Water filling machine adopts perfect overload protective device can ensure the operator and machine safety.

8.Water filling machine control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

9.Water filling machine configurations used world famous brand.

10.Water filling machine control is HMI touch screen connect, easy and clear for operators.

Product Configurations

Name Supplier
Main Motor & Reducer SEW-Germany
Rinsing Pump CNP-China
Inverter SIEMENS-Germany
PLC SIEMENS-Germany
Touch Screen SIEMENS-Germany
Contactor SCHNEIDER-France
Hot Relay SCHNEIDER-France
Air Switch LEUZE/BANNER-Germany
Photoelectric Switch BANNER-USA

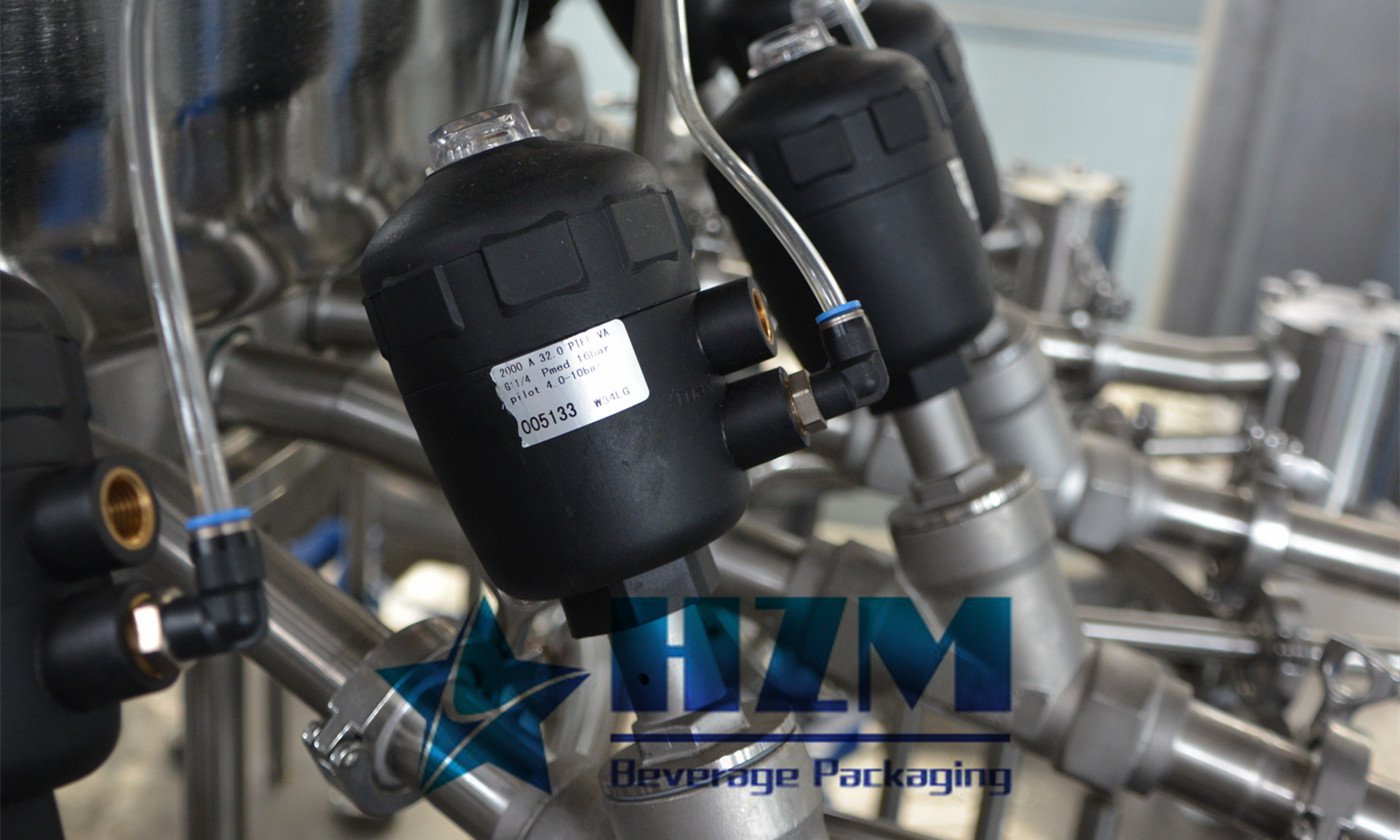

Pneumatic Components FESTO-Germany
Sliding Bearing IGUS-Germany

Product Parameters

Model Washing

Heads

 Filling

Heads

 Capping

Heads

 Capacity

(Based on 5L)

 Dimension

(mm)

 Power

(KW)
XGF12/12/4 12 12 4 1500 2800*2230*2700 2.2
XGF16/16/5 16 16 5 2200 3790*3000*2700 3.0
XGF20/20/5 20 20 5 3000 4550*3280*2700 3.0
